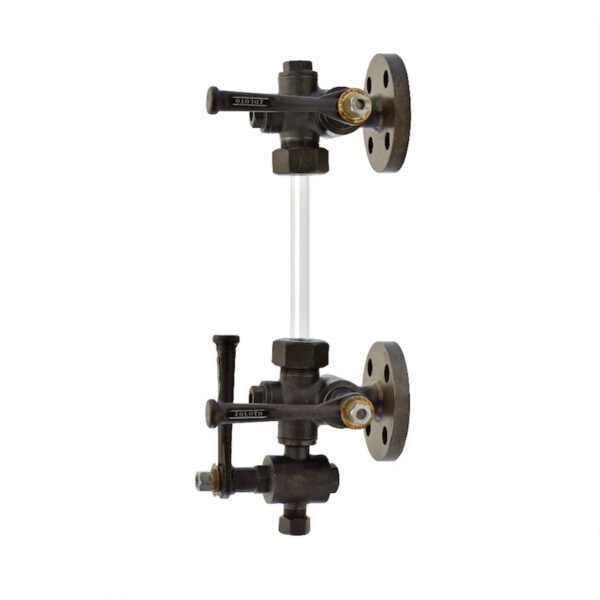

Article Code 1091

Salient Features

• Flanged End to BS 10 Table ‘J’.
• Automatic Shut Off Device in Water Arm.
• Available for both, Right Hand and Left Hand.
• Premium Quality Sleeve, Reinforced by metallic eye holes, is provided to avoid any clogging of passage.
• Each piece is fitted with self adjusting inverted taper plug (Stainless Steel) which forms a seal in the renewable moulded asbestos sleeve.
• Sleeve can easily be positioned by a rib which fits in the corresponding   groove of the body.

Test Pressure (Hydrostatic) :
Shell : 48 kg/cm²g (700 psig)
Test Pressure (Steam) :
Seat : 24.50 kg/cm²g (350 psig)
Maximum Working Temperature : 425°C
