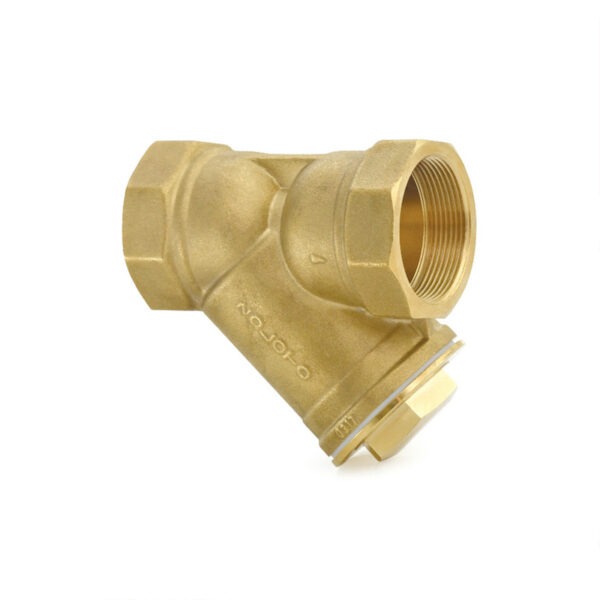

Forged Brass Y-Type Strainer (Screwed) PN 25

Screwed Female Ends to BSP.
Stainless Steel (S.S 304) Ø1 mm perforated sheet screen is guided in the body and cover.
Fine finish and smooth contours reduce pressure drop in the strainer.
Large screening area makes the strainer efficient in performance.

Test Pressure (Hydrostatic) :
Shell : 35 kg/cm²g (500 psig)
Working Pressure : 25 kg/cm²g (350 psig)

Suitable For Steam* , Water, Oil, Air*, Gases*
*Suitable for pressure upto 6.9 kg/cm²g (100 psig)

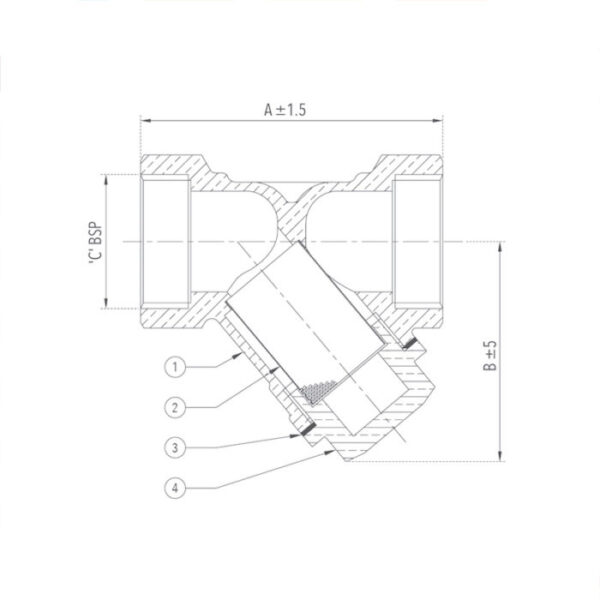

P.No.	Name of Part	Material of Construction	Specification	Quantity
1	Body	Forged Brass	IS 6912 Gr. FLB	1
2	Screen (Ø1 mm Perforation)	Stainless Steel	Type 304	1
3	Gasket	PTFE	BS EN 12086-1	1
4	Cover	Forged Brass	IS 6912 Gr. FLB	1

Size (Inches)	Size (mm)	A ±1.5	B ±5	C
1/2	15	54	45	1/2″
3/4	20	67.5	56	3/4″
1	25	75	56	1″
1 1/4	32	94	73	1 1/4″
1 1/2	40	100	80	1 1/2″
2	50	126	99	2″
