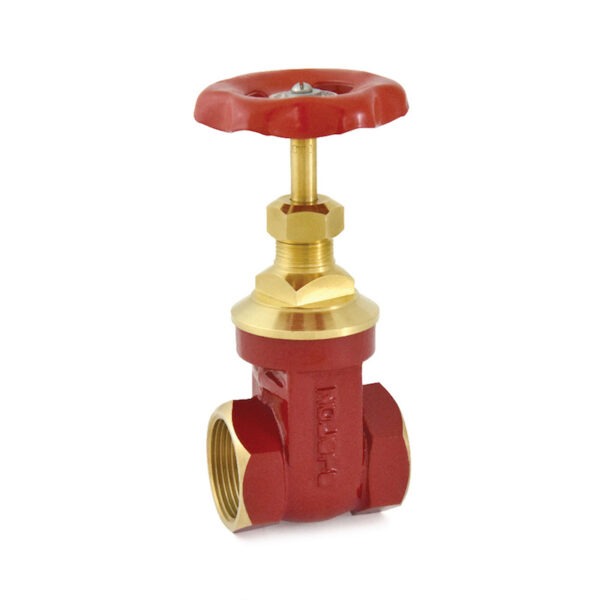

Materials
| P.No. | Name of Part | Material of Construction | Specification | Quantity |
|---|---|---|---|---|
| 1 | Screw / Bolt | Carbon Steel (Zinc Plated) | – – – | 1 |
| 2 | Washer | Carbon Steel (Zinc Plated) | – – – | 1 |
| 3 | Handwheel | Sheet Metal (Powder Coated) | – – – | 1 |
| 4 | Stem | Forged Brass | IS 6912 Gr. FLB | 1 |
| 5 | Gland Nut | Forged Brass | IS 6912 Gr. FLB | 1 |
| 6 | Gland | Forged Brass | IS 6912 Gr. FLB | 1 |
| 7 | Gland Packing | PTFE | BS EN 12086 – 1 | – |
| 8 | Bonnet | Forged Brass / Bronze | IS 6912 Gr. FLB / IS 318 Gr. LTB2 | 1 |
| 9 | Check Nut | Forged Brass | IS 6912 Gr. FLB | 1 |
| 10 | Body | Bronze | IS 318 Gr. LTB 2 | 1 |
| 11 | Wedge | Bronze | IS 318 Gr. LTB 2 | 1 |
| 12 | Name Plate | Aluminium | – – – | 1 |
Sizes / Dimensions
| Size (Inches) | Size (mm) | A ±1.5 | B ~ | ØC ~ | D |
|---|---|---|---|---|---|
| 1/4 | 8 | 43 | 89 | 50 | 1/4″ |
| 3/8 | 10 | 43 | 92 | 50 | 3/8″ |
| 1/2 | 15 | 48 | 105 | 60 | 1/2″ |
| 3/4 | 20 | 53 | 114 | 65 | 3/4″ |
| 1 | 25 | 60 | 129 | 70 | 1″ |
| 1 1/4 | 32 | 68 | 139 | 80 | 1 1/4″ |
| 1 1/2 | 40 | 72 | 155 | 90 | 1 1/2″ |
| 2 | 50 | 83 | 189 | 110 | 2″ |
| 2 1/2 | 65 | 94 | 220 | 120 | 2 1/2″ |
| 3 | 80 | 105 | 250 | 140 | 3″ |
| 4 | 100 | 127 | 307 | 160 | 4″ |
