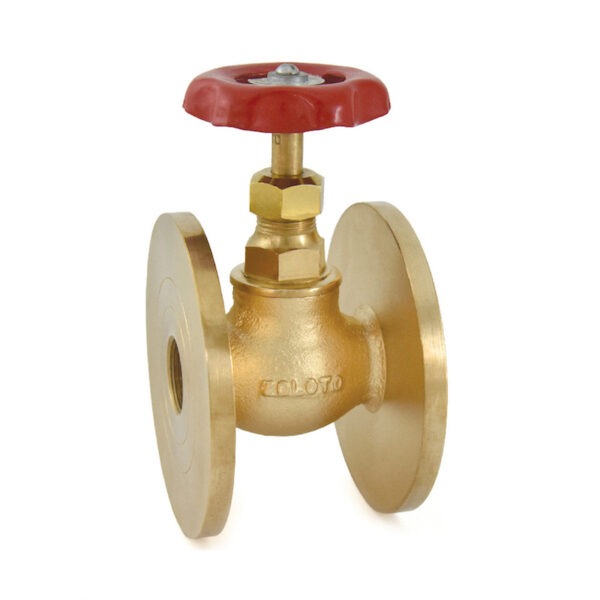

Materials

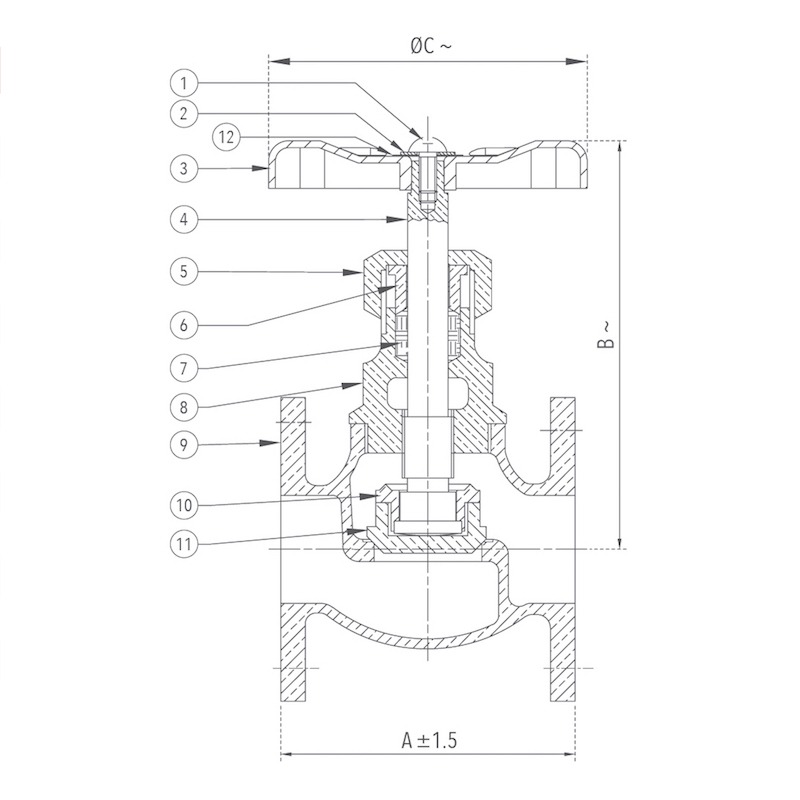

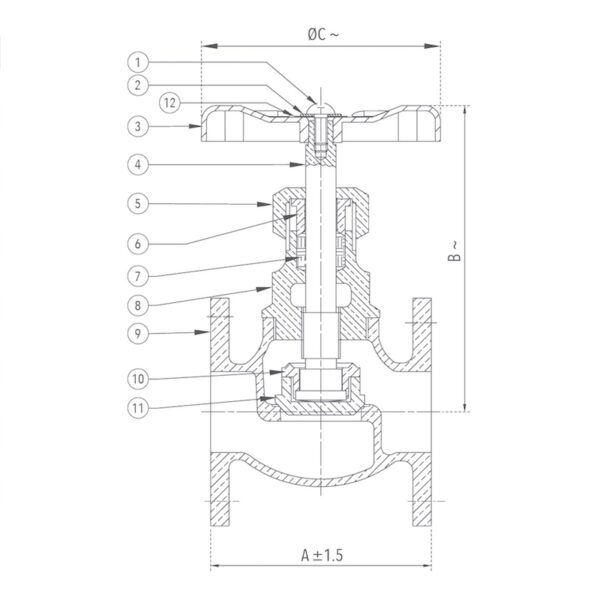

| P.No. | Name of Part | Material of Construction | Specification | Quantity |
|---|---|---|---|---|
| 1 | Screw / Bolt | Carbon Steel (Zinc Plated) | – – – | 1 |
| 2 | Washer | Carbon Steel (Zinc Plated) | – – – | 1 |
| 3 | Handwheel | Sheet Metal (Powder Coated) / Cast Iron | – – – / IS 210 Gr. FG 200 | 1 |
| 4 | Stem | Forged Brass | IS 6912 Gr. FLB | 1 |
| 5 | Gland Nut | Forged Brass | IS 6912 Gr. FLB | 1 |
| 6 | Gland | Forged Brass | IS 6912 Gr. FLB | 1 |
| 7 | Gland Packing | PTFE | BS EN 12086 – 1 | – |
| 8 | Bonnet | Bronze | IS 318 Gr. LTB2 | 1 |
| 9 | Body | Bronze | IS 318 Gr. LTB2 | 1 |
| 10 | Disc Nut | Bronze | IS 318 Gr. LTB2 | 1 |
| 11 | Disc | Bronze | IS 318 Gr. LTB2 | 1 |
| 12 | Name Plate | Aluminium | – – – | 1 |
Sizes / Dimensions
| Size (Inches) | Size (mm) | A ±1.5 | B ~ | ØC ~ |
|---|---|---|---|---|
| 1/2 | 15 | 53 | 85 | 50 |
| 3/4 | 20 | 67 | 90 | 57 |
| 1 | 25 | 80 | 98 | 62 |
| 1 1/4 | 32 | 85 | 115 | 76 |
| 1 1/2 | 40 | 91 | 127 | 80 |
| 2 | 50 | 106 | 140 | 86 |
