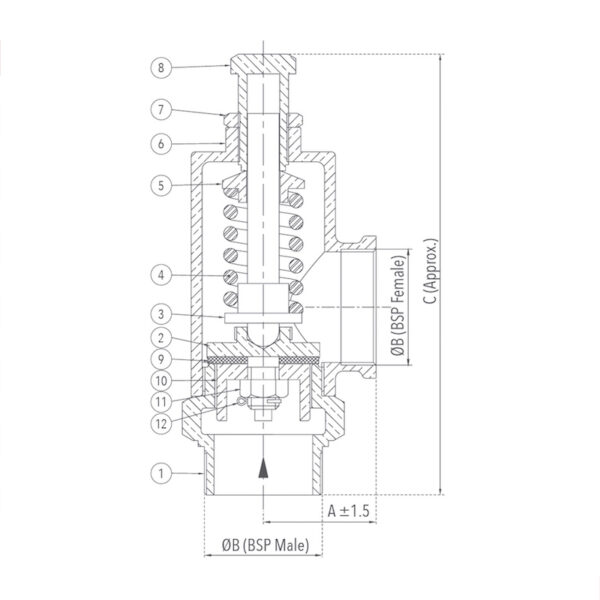

Materials
| P.No. | Name of Part | Material of Construction | Specification | Qty. |
|---|---|---|---|---|
| 1 | Body | Bronze | IS 318 Gr. LTB 2 | 1 |
| 2 | Disc | Bronze | IS 318 Gr. LTB 2 | 1 |
| 3 | Stem | Forged Brass | IS 6912 Gr. FLB | 1 |
| 4 | Spring | Spring Steel | EN 47 Gr. B | 1 |
| 5 | Spring Disc | Bronze | IS 318 Gr. LTB 2 | 1 |
| 6 | Chamber | Bronze | IS 318 Gr. LTB 2 | 1 |
| 7 | Check Nut | Bronze | IS 318 Gr. LTB 2 | 1 |
| 8 | Adjusting Screw | Bronze | IS 318 Gr. LTB 2 | 1 |
| 9 | Disc Facing | Nitrile Rubber | IS 5192 – 1 | 1 |
| 10 | Guide | Bronze | IS 318 Gr. LTB 2 | 1 |
| 11 | Nut | Brass | – – – | 1 |
| 12 | Split Pin | Brass | – – – | 1 |
Sizes / Dimensions
| Size (Inches) | Size (mm) | A ±1.5 | B | C ~ |
|---|---|---|---|---|
| 1/2 | 15 | 33 | 1/2″ | 146 |
| 3/4 | 20 | 38.5 | 3/4″ | 160 |
| 1 | 25 | 45 | 1″ | 173 |
| 1 1/4 | 32 | 45 | 1 1/4″ | 190 |
| 1 1/2 | 40 | 57 | 1 1/2″ | 220 |
| 2 | 50 | 57 | 2″ | 240 |
NOTE : Also available in Metal to Metal contact seating.
