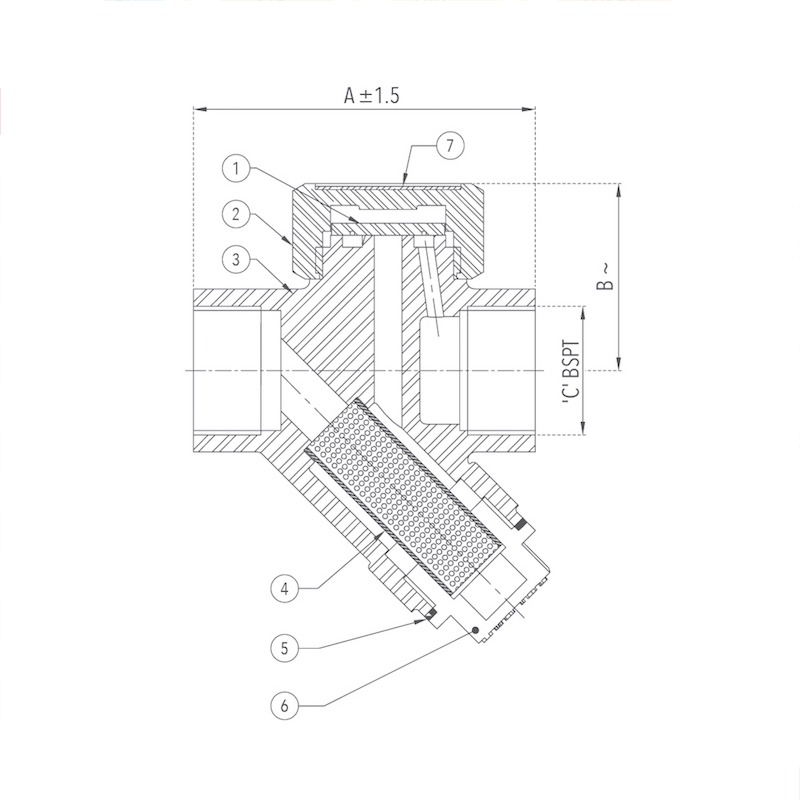

Materials
| P.No. | Name of Part | Material of Construction | Specification | Qty. |
|---|---|---|---|---|
| 1 | Disc | Stainless Steel | ASTM A 276 Type 420 | 1 |
| 2 | Cover | Stainless Steel | ASTM A 743 Gr. CA40 | 1 |
| 3 | Body | Stainless Steel | ASTM A 743 Gr. CA40 | 1 |
| 4 | Screen | Stainless Steel | Type 304 | 1 |
| 5 | Gasket | Steam Jointing Sheet | IS 2712 Gr. W/3 | 1 |
| 6 | Plug | Stainless Steel | ASTM A 743 Gr. CA40 | 1 |
| 7 | Name Plate | Aluminium | – – – | 1 |
Sizes / Dimensions
| Size (Inches) | Size (mm) | A ±1.5 | B ~ | C |
|---|---|---|---|---|
| 1/2 | 15 | 77 | 47 | 1/2″ |
| 3/4 | 20 | 77 | 47 | 3/4″ |
| 1 | 25 | 86 | 47 | 1″ |
