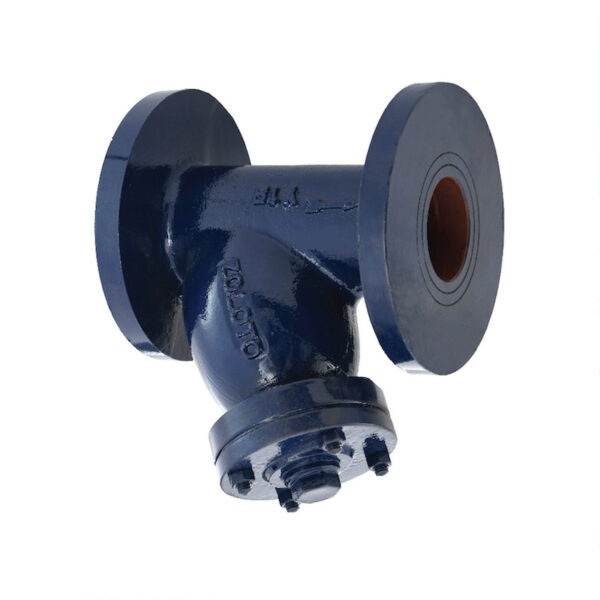

Materials
| P.No. | Name of Part | Material of Construction | Specification | Qty. | |
|---|---|---|---|---|---|
| 1 | Body | Cast Iron | IS 210 Gr. FG 200 | 1 | |
| 2 | Screen | Stainless Steel | Type 304 | 1 | |
| 3 | Gasket | Rubber | IS 638 Type B | 1 | |
| 4 | Cover | Cast Iron | IS 210 Gr. FG 200 | 1 | |
| 5 | Nuts | Carbon Steel | IS 1367 | As Reqd. | |
| 6 | Studs | Carbon Steel | IS 1367 | As Reqd. | |
| 7 | Gasket | Rubber |
|
1 | |
| 8 | Drain Plug | Brass / Bronze | IS 6912 Gr. FLB / IS 318 Gr. LTB 2 | 1 |
Sizes / Dimensions
| Size (Inches) | Size (mm) | A ±2 | B | ØC +3 | D |
|---|---|---|---|---|---|
| 1 1/2 | 40 | 165 | 16 ±1.5 | 140 | 152 |
| 2 | 50 | 180 | 19 ±1.7 | 165 | 175 |
| 2 1/2 | 65 | 206 | 19 ±1.7 | 184.5 | 180 |
| 3 | 80 | 260 | 19 ±1.7 | 203.2 | 238 |
| 4 | 100 | 295 | 22.2 ±1.8 | 228.6 | 250 |
| 5 | 125 | 385 | 25.4 ±2 | 279.4 | 320 |
| 6 | 150 | 385 | 25.4 ±2 | 305 | 320 |
| 8 | 200 | 525 | 28.6 ±2 | 368.3 | 395 |
